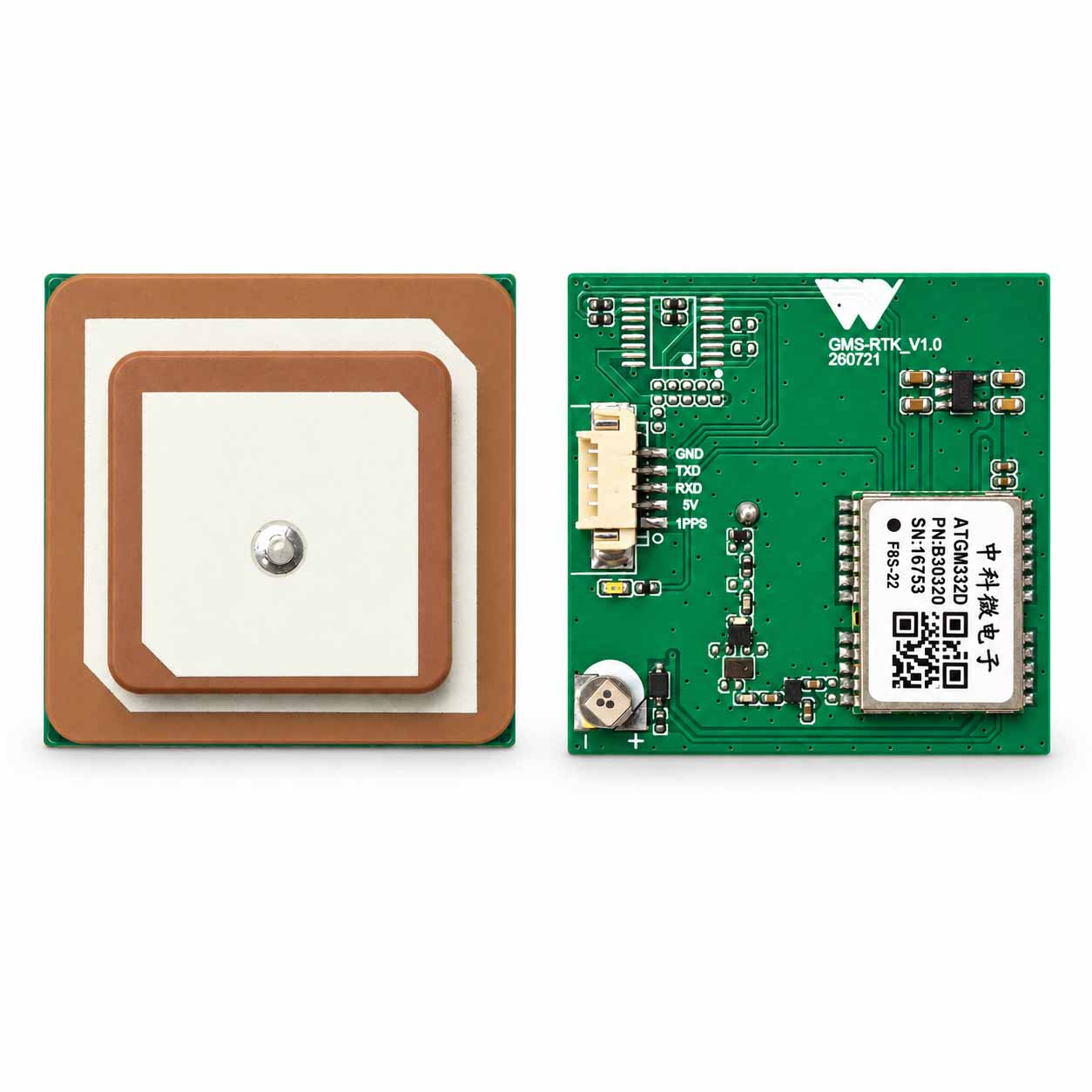

WKG035BT0FY01 is a dual-frequency RTK GNSS module supporting BDS, GPS, QZSS, SBAS and Galileo. It provides centimeter-level high-precision positioning for UAV, surveying, precision agriculture and robotics.
l Supports BeiDou-2 and BeiDou-3;
l Supports BDS / GPS / Galileo / GLONASS multi-system combined positioning as well as standalone positioning by a single GNSS system;
l Supports AGNSS;
l Cold-start acquisition sensitivity: -148 dBm;
l Hot-start acquisition sensitivity: -156 dBm;
l Reacquisition sensitivity: -160 dBm;
l Tracking sensitivity: -162 dBm;
l Dual-frequency RTK with centimeter-level high-precision positioning;
l Supports RTCM 3.x;
l Power consumption: ~49 mA @ 5 V in continuous operation; standby current ≤ 20 μA;
l Built-in LNA, antenna detection, and antenna short-circuit protection;
l Equipped with a 35 × 35 × 4 mm + 25 × 25 × 4 mm stacked high-performance ceramic antenna;
l On-board supercapacitor supports fast hot start;
l Standard NMEA-0183 protocol output.
l Precision Agriculture;
l Surveying & Mapping;
l Robotics / AGV / AMR;
l UAV / Drone;
l Vehicle / Fleet High-Precision Positioning;
l Construction Machinery;
l Smart Logistics / Ports;
l Autonomous Systems;
l Timing & Synchronization;
l High-Precision IoT.
